（for Verreal F1 Max & Verreal Mini）10S2P 36V 10Ah Electric Skateboard Battery Pack – 21700 Cells, 360Wh

10S2P 36V Electric Skateboard Battery Pack for Verreal F1 Max & Mini

This 10S2P electric skateboard battery pack is designed for Verreal F1 Max and Verreal Mini electric skateboards, offering reliable power output, improved range, and stable long-term performance.

Built with 21700 lithium-ion cells, this battery provides a 36V nominal voltage, 10Ah capacity, and 360Wh total energy, making it a solid upgrade or replacement option for riders who want longer ride time without increasing system complexity.

Each cell supports 3C continuous discharge, allowing the full battery pack to deliver up to 30A continuous output, which comfortably matches the 18A continuous current requirement of the Verreal F1 Max and Verreal Mini controllers.

Battery Specifications

1. Configuration: 10S2P
2. Nominal Voltage: 36V
3. Capacity: 10Ah
4. Energy: 360Wh
5. Cell Type: 21700 lithium-ion cells
6. Cell Capacity: 5000mAh per cell
7. Cell Discharge Rating: 3C
8. Max Continuous Discharge (Pack): 30A
9. Compatible Controllers: Up to 18A continuous current
10. Application: Verreal F1 Max / Verreal Mini electric skateboards

Connectors & Wiring (Final Delivery)

1. ESC / Battery Connector: XT60 female
2. Battery Charging Connector: XT30 female

Available Variants

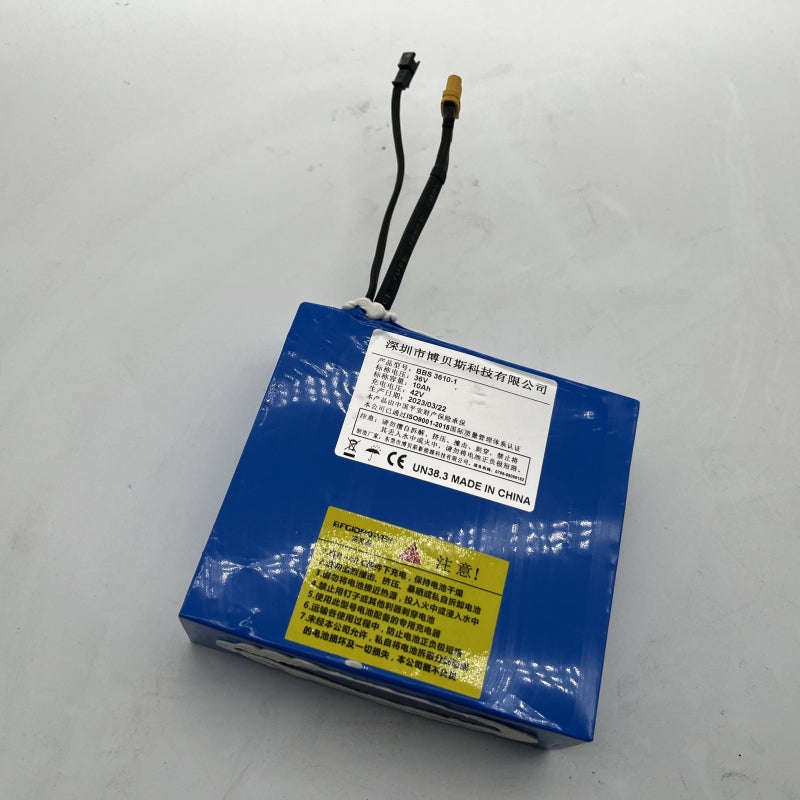

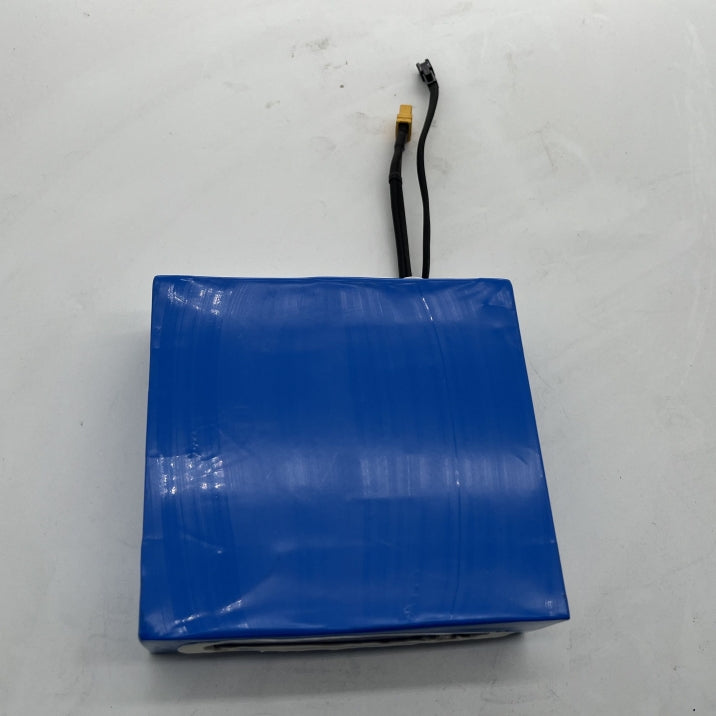

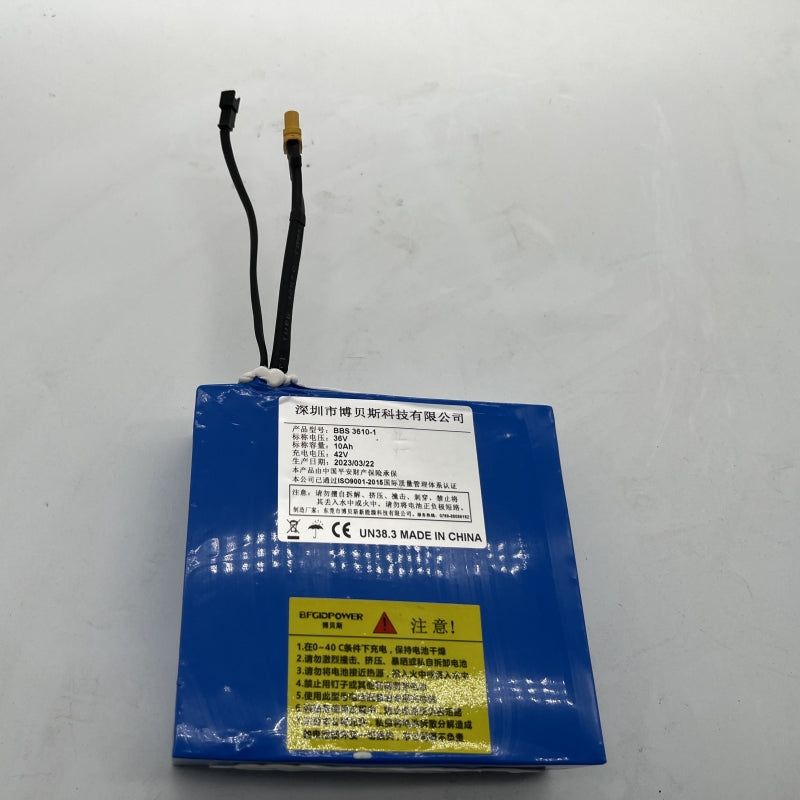

1. Battery Pack Only – standalone battery pack

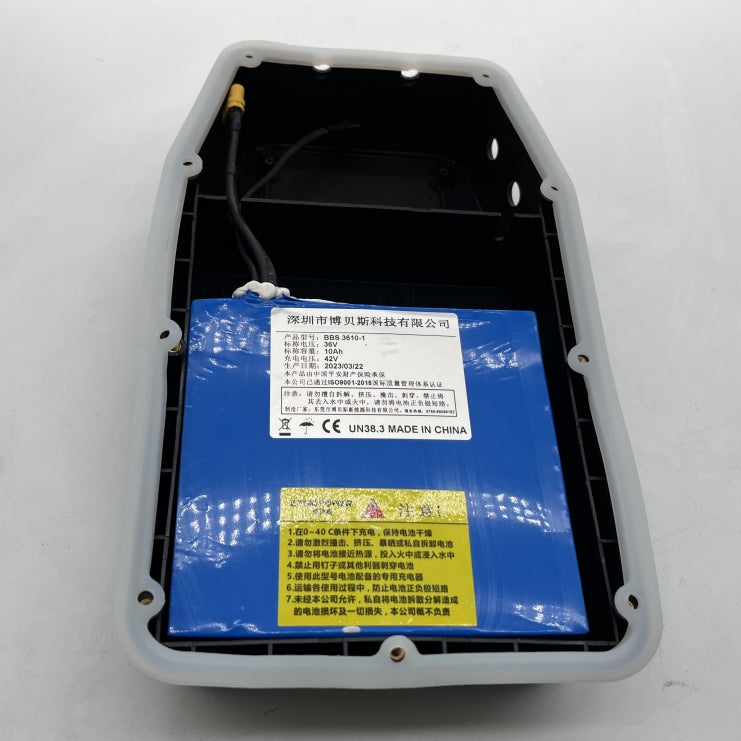

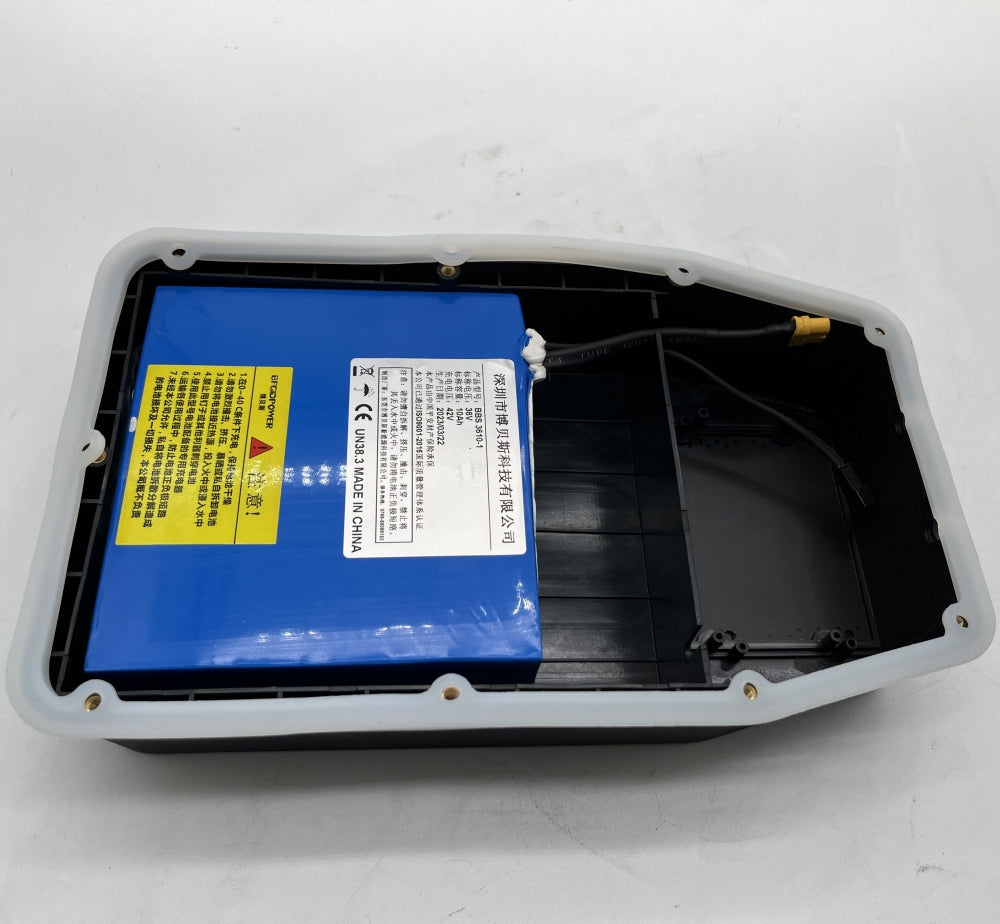

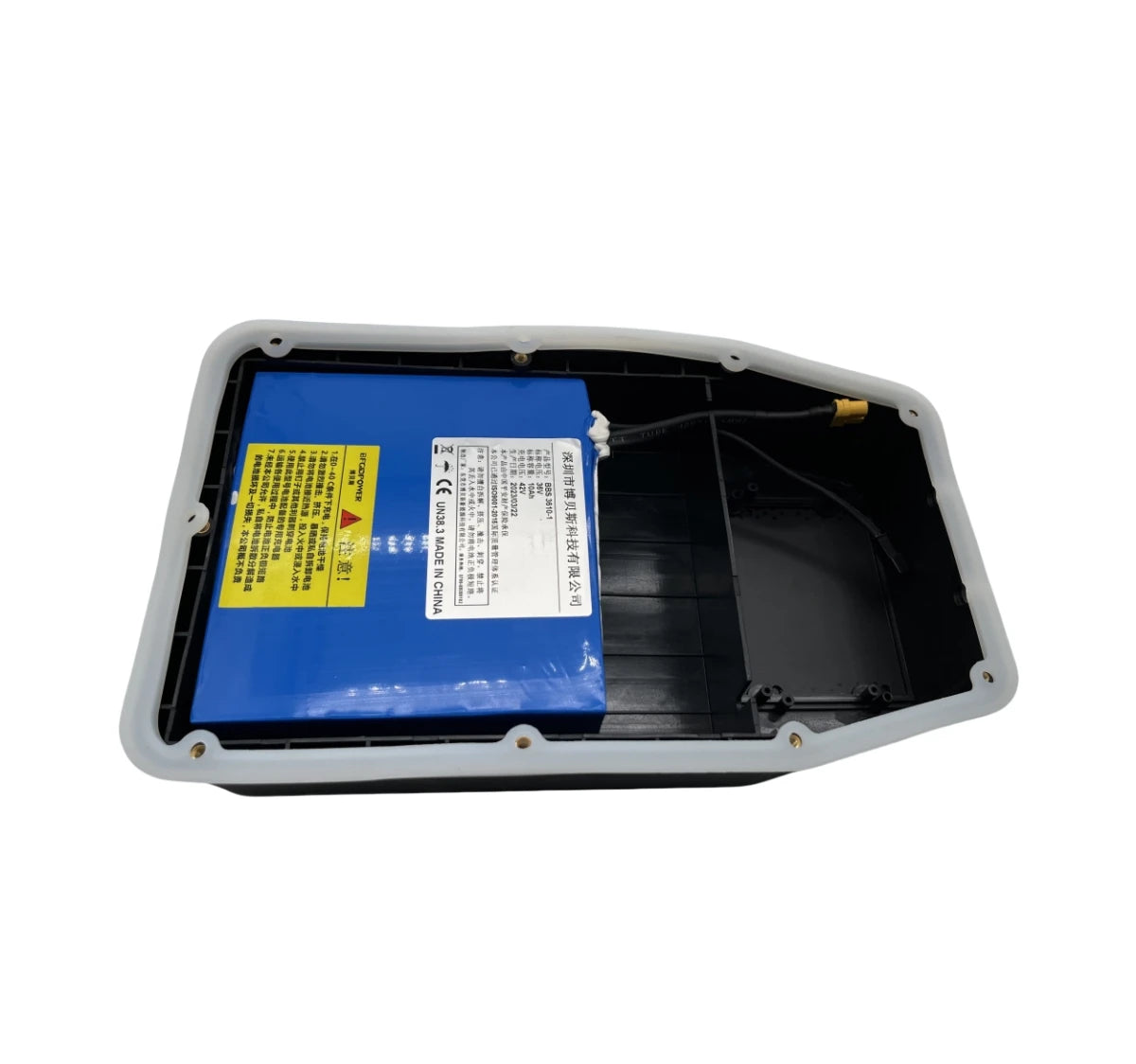

2. Battery Pack Installed in Enclosure – battery pre-installed in battery enclosure with charging port mounted

Key Benefits

1. Optimized for Verreal Controllers
   Designed to work safely and efficiently with Verreal F1 Max and Verreal Mini ESC current limits.
2. Longer Range, Stable Output
   360Wh capacity delivers extended ride time with consistent voltage under load.
3. Modern 21700 Cell Format
   Higher energy density compared to traditional 18650 packs.
4. Reliable & Service-Friendly
   Ideal as a replacement battery or upgrade without changing drivetrain or electronics.

⚠️ Important Notice – Product Images & Connector Differences

Connector Appearance Disclaimer

Some product images may show different connector types than the final delivered product.

1. Final shipped battery packs use an XT60 female connector for ESC output
2. Charging connector will be an XT30 female
3. Product images are for reference only and may show earlier connector configurations

These changes do not affect performance, compatibility, or safety, and ensure standardized connectors across current production batches.

⚠️ Safety Notes

1. For electric skateboard use only
2. Use with compatible 36V ESCs and chargers
3. Do not disassemble, crush, or short-circuit the battery pack
