(Verreal V1 and Verreal V1S)10S2P 36V 4Ah Electric Skateboard Battery Pack – 18650 Cells, 35A BMS

As Shown In This Video:

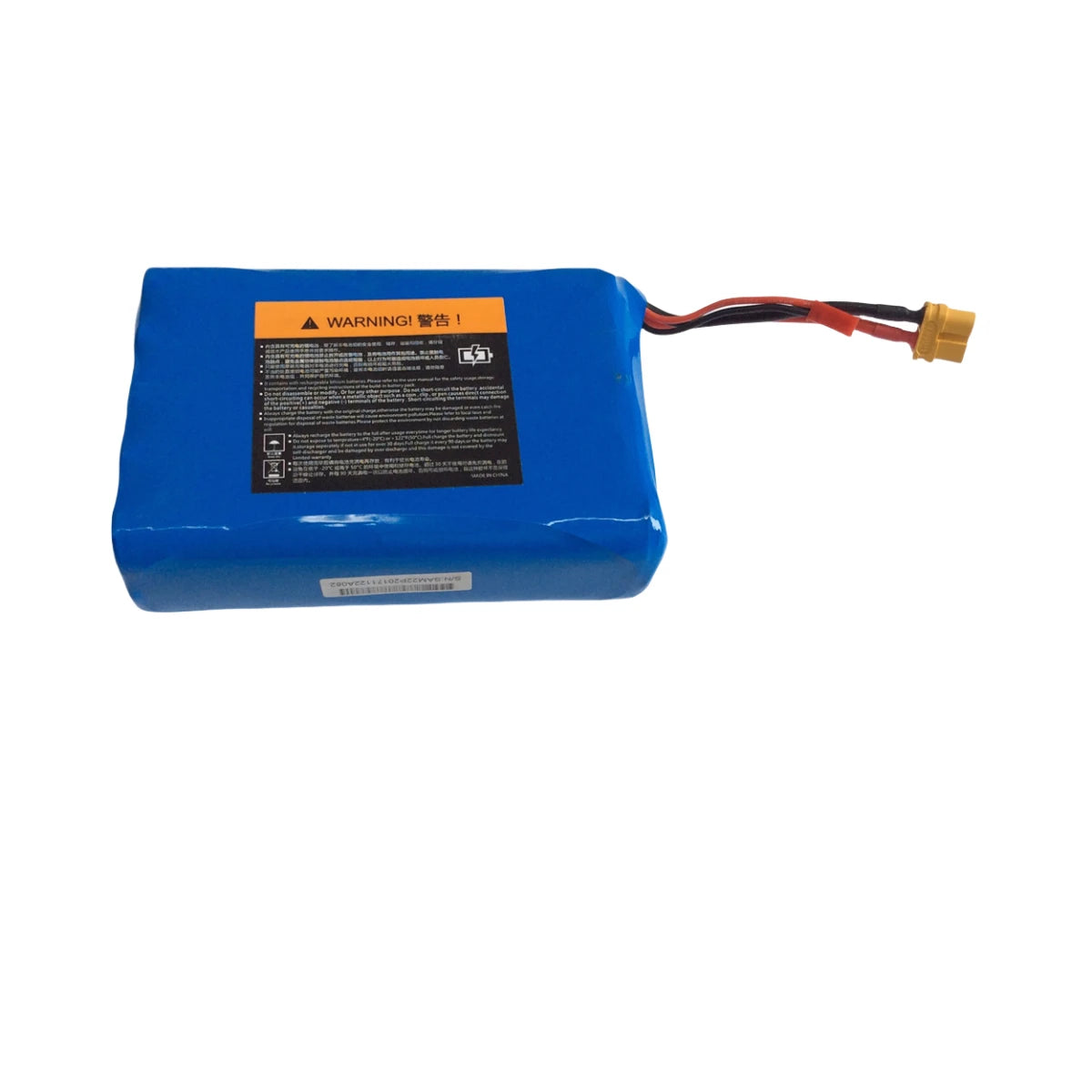

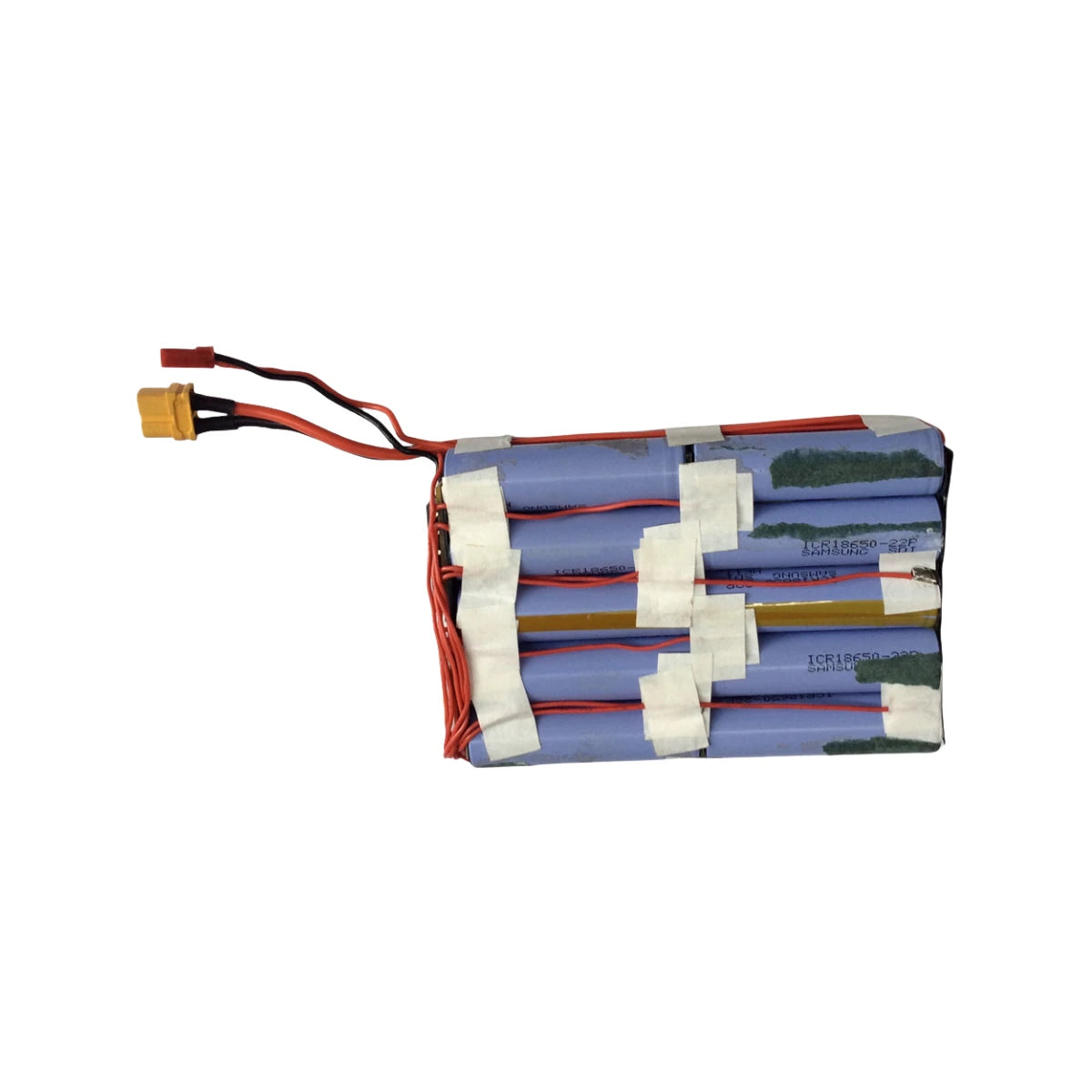

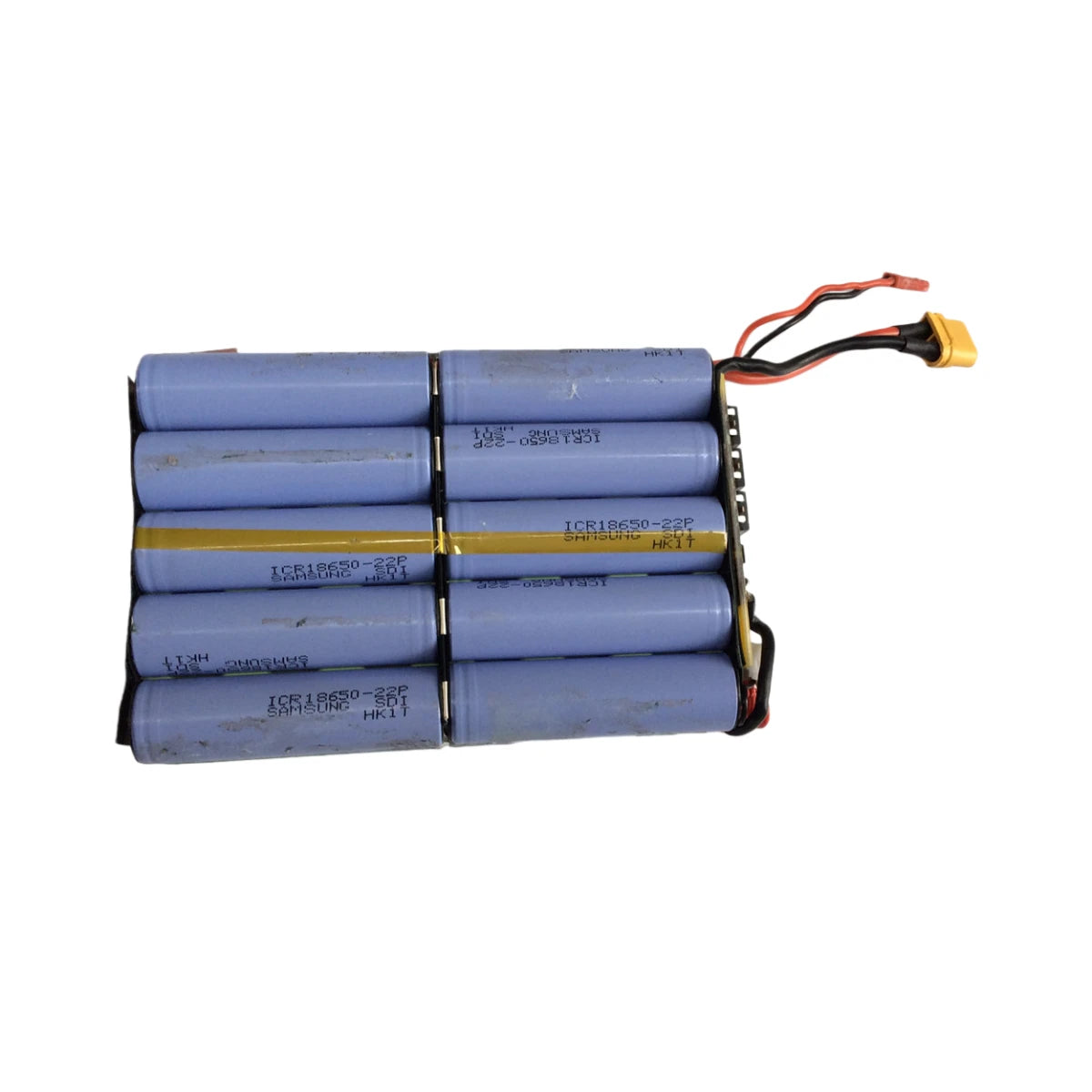

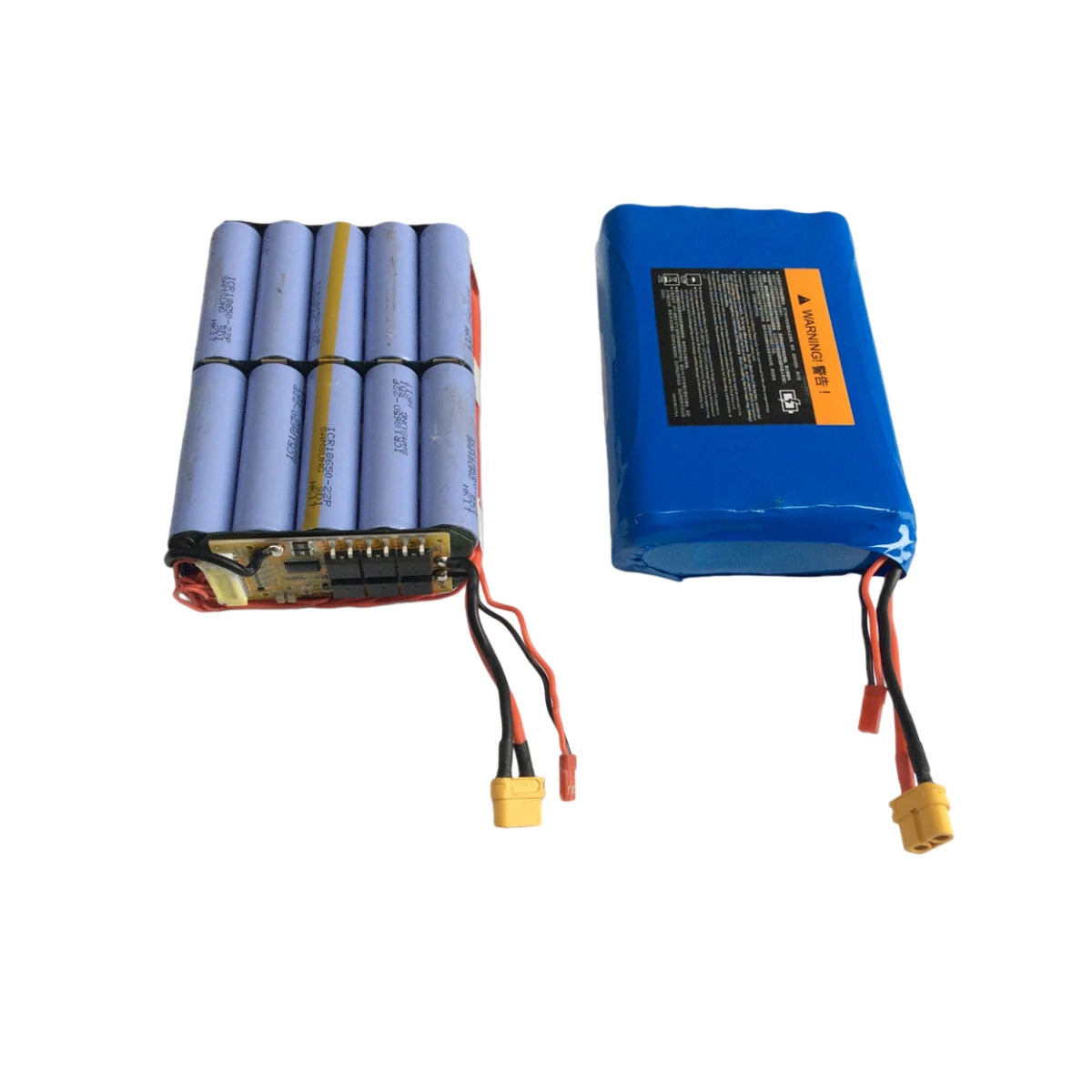

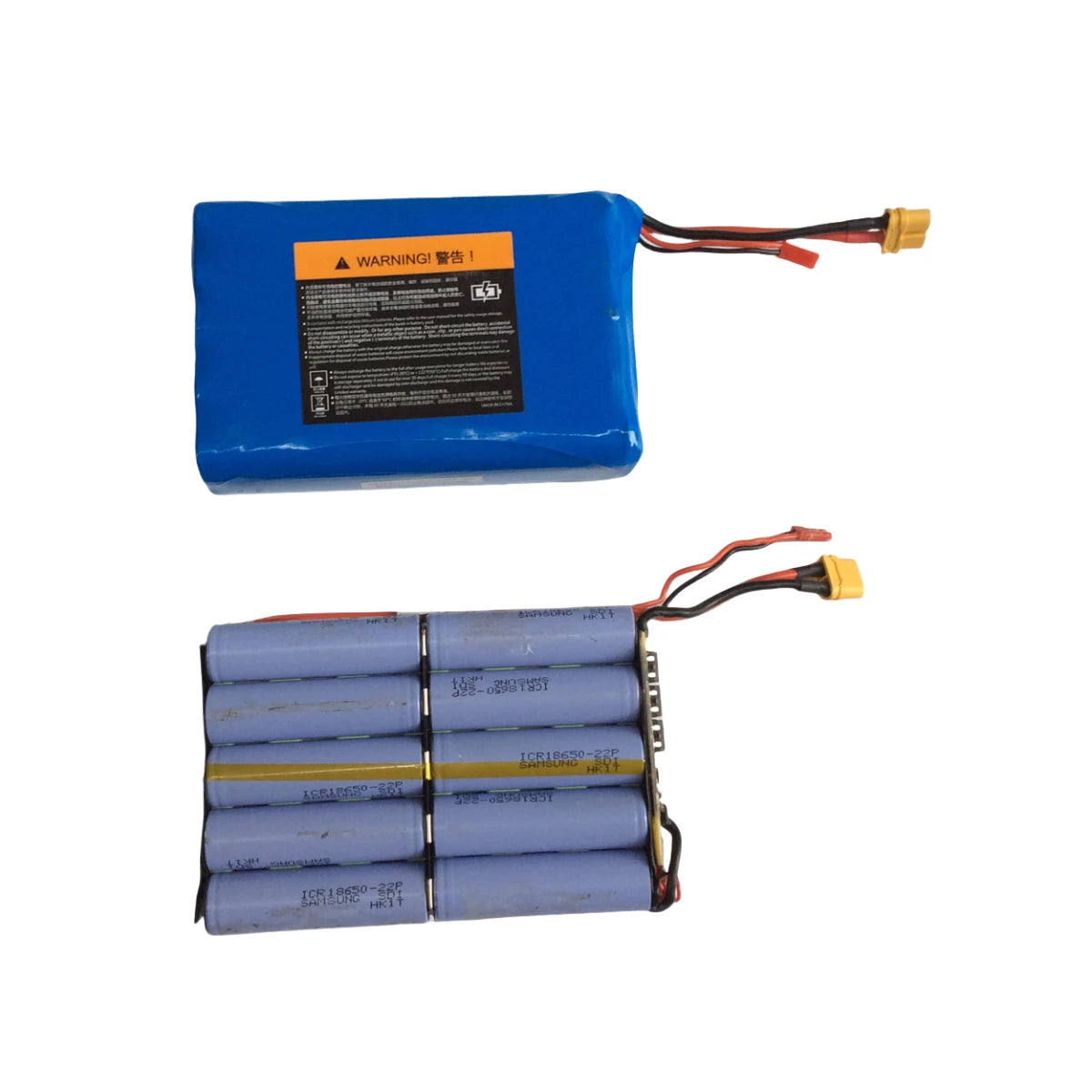

10S2P Electric Skateboard Battery Pack – Compact, Reliable Power

This 10S2P electric skateboard battery pack is built using 18650 lithium-ion cells and designed for compact electric skateboard setups requiring stable output, reliable discharge, and long service life.

With a 36V nominal voltage, 4Ah capacity, and 144Wh total energy, this battery pack offers a balanced combination of range, power delivery, and portability—ideal for commuter boards, lightweight builds, or replacement battery solutions.

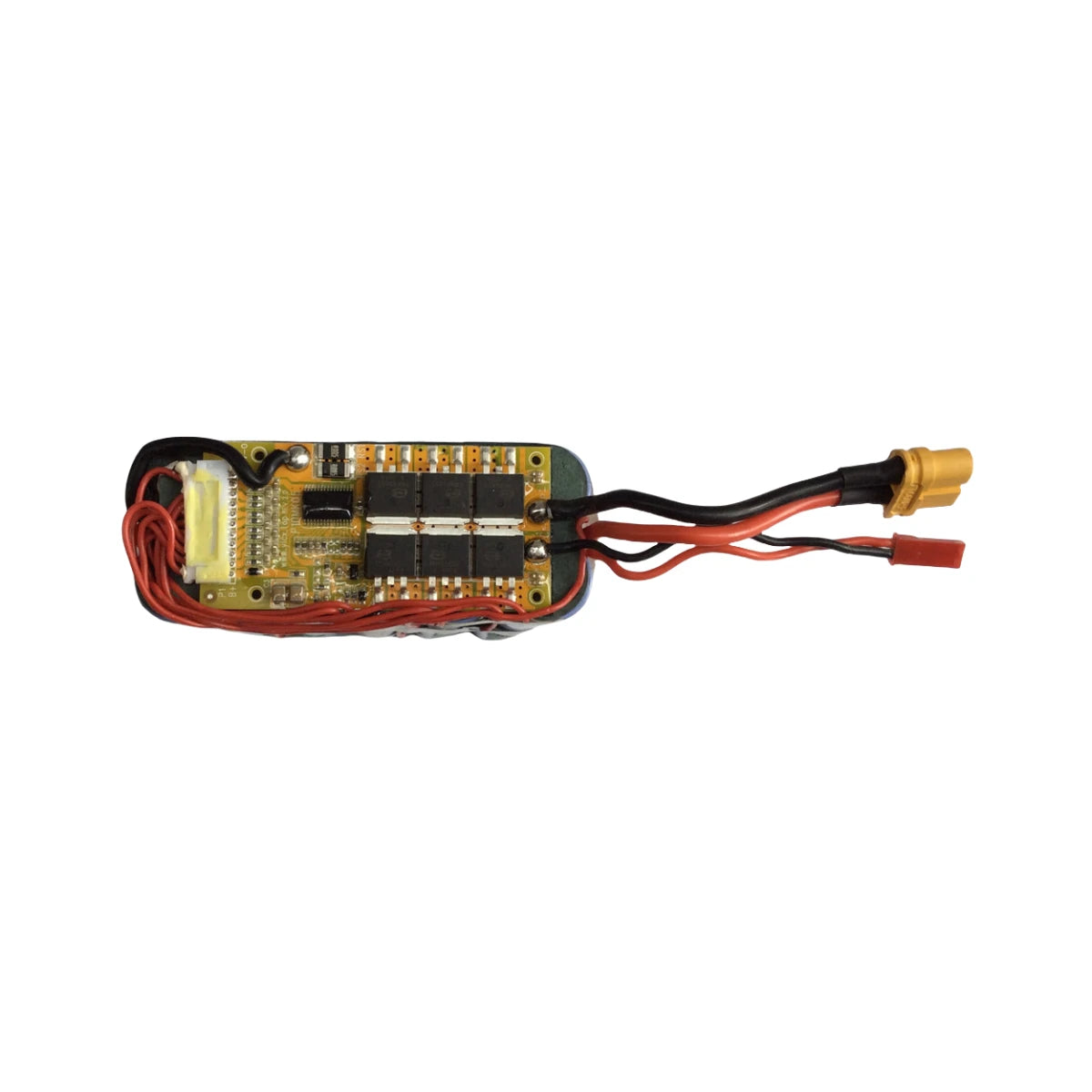

A 35A discharge BMS is integrated to provide protection against over-current, over-charge, over-discharge, and short circuit, ensuring safe and consistent operation.

Battery Specifications

1. Configuration: 10S2P
2. Nominal Voltage: 36V
3. Capacity: 4Ah
4. Energy: 144Wh
5. Cell Type: 18650 lithium-ion cells
6. Cell Rating: 2000mAh, 10C
7. Max Continuous Discharge (Cells): 20A per cell
8. BMS Discharge Rating: 35A
9. Application: Electric skateboards and similar light electric vehicles

Connectors & Wiring

1. Discharge Connector: XT30 female (final production version)
2. Charge Connector: XT60 female
3. Bonus: Charging port included to match the battery discharge port

Key Features

1. Compact 10S2P layout for limited enclosure space
2. Reliable power delivery for hub or belt drive setups
3. Integrated BMS for safety and battery longevity
4. Suitable as replacement or upgrade battery pack

⚠️ Important Notice – Connector & Image Disclaimer

About Product Images & Connectors

Some product images show a different discharge connector than the final shipped version.

1. Actual shipped battery pack uses an XT30 female discharge connector
2. Product images are for structure and layout reference only
3. A compatible charging port will be included free of charge with your order

This does not affect performance or compatibility, and ensures improved reliability and standardization in final production units.

⚠️ Safety Notes

1. For electric skateboard use only
2. Use with a compatible ESC and charger
3. Do not short circuit, crush, or disassemble the battery pack
